General Key Specifications & Special Features:

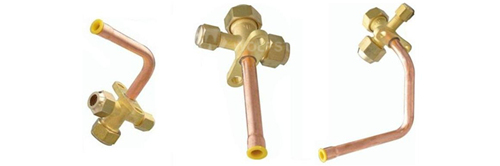

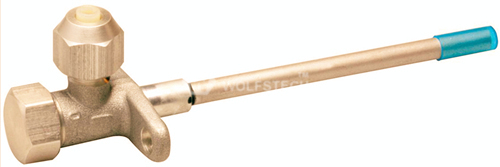

l The Cut Off Valve is suitable for connecting purpose of gas pipe and liquid pipe of outdoor unit of Split Air-conditioners. It can help easier installation and repair.
l R22, R134a, R407C, and R410a Refrigerants;
l Working Pressure: 6.22Mpa max.;
l Working Temperature: -300C-+1200C;
l Connection: Flare/SAE;
l Certification: CCC, CQC, CE;
Technical Parameters:
|
Type
|
No.
|
Model
|
Connection
|
Diameter
(mm)
|
Dimension
|
|
Inch
|
mm
|
A
|
B
|
C
|
D
|
E
|
HEXG
|
H/HXH
|
|
|
2 way
|
1
|
JZF22-1/4
|
1/4
|
6.35
|
5.0
|
7/16X20UNF
|
38
|
15
|
24
|
38
|
4
|
50
|
|
2
|
JZF22-3/8
|
3/8
|
9.52
|
5.0
|
5/8X18UNF
|
41
|
16
|
26
|
38
|
4
|
50
|
|
3
|
JZF23-1/4
|
1/4
|
6.35
|
5.0
|
7/16X20UNF
|
38
|
15
|
49
|
38
|
4
|
50
|
|
4
|
JZF23-3/8
|
3/8
|
9.52
|
7.0
|
5/8X18UNF
|
41
|
16
|
54
|
38
|
4
|
50
|
|
5
|
JZF23-1/2
|
1/2
|
12.7
|
10.0
|
3/4X16UNF
|
43
|
17
|
58
|
38
|
4
|
50
|
|
6
|
JZF23-5/8
|
5/8
|
15.88
|
12(10.5)
|
7/8X14UNF
|
51
|
18
|
65
|
38
|
5
|
50
|
|
7
|
JZF23-3/4
|
3/4
|
19.05
|
13(16)
|
1-1/16X14UNF
|
62
|
23.5
|
73
|
44
|
5
|
50
|
|
3 way
|
1
|
JZF32-1/4
|
1/4
|
6.35
|
5.0
|
7/16X20UNF
|
38
|
15
|
24
|
38
|
4
|
60X60
|
|
2
|
JZF32-3/8
|
3/8
|
9.52
|
5.0
|
5/8X18UNF
|
41
|
16
|
26
|
38
|
4
|
60X60
|
|
3
|
JZF33-1/4
|
1/4
|
6.35
|
5.0
|
7/16X20UNF
|
38
|
15
|
49
|
38
|
4
|
60X60
|
|
4
|
JZF33-3/8
|
3/8
|
9.52
|
7.0
|
5/8X18UNF
|
41
|
16
|
54
|
38
|
4
|
60X60
|
|
5
|
JZF33-1/2
|
1/2
|
12.7
|
10.0
|
3/4X16UNF
|
43
|
17
|
58
|
38
|
4
|
60X60
|
|
6
|
JZF33-5/8
|
5/8
|
15.88
|
12(10.5)
|
7/8X14UNF
|
51
|
18
|
65
|
38
|
5
|
60X60
|
|
7
|
JZF33-3/4
|
3/4
|
19.05
|
13(16)
|
1-1/16X14UNF
|
62
|
23.5
|
73
|
44
|
5
|
60X60
|
