General Key Specifications & Special Features:

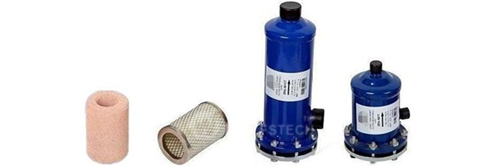

l Wolfstech’s Take-apart Filter Dryers can be used in the liquid line and suction line of refrigeration system for refrigerators, freezers and air-conditioners. Exchangeable solid core is sealed with flange connection, which is very convenient to adjust and maintain the system;
l R22, R134a, R407c,R410a Refrigerants;
l Working Temperature:-300C-+1200C;
Technical Parameters
|
Model
|
ODF(Inch)
|
Dimension(Inch)
|
Cores’ Quantity
|
Weight
(Kg)
|
|
L
|
L1
|
A
|
B
|
|
GGT-001
|
5/8
|
9.31
|
6.09
|
4.5
|
6.05
|
1
|
5.5
|
|
GGT-002
|
7/8
|
9.50
|
6.25
|
4.5
|
6.05
|
1
|
5.5
|
|
GGT-003
|
1-1/8
|
9.38
|
6.31
|
4.5
|
6.05
|
1
|
5.5
|
|
GGT-004
|
1-3/8
|
9.75
|
6.44
|
4.5
|
6.05
|
1
|
5.5
|
|
GGT-005
|
7/8
|
15.13
|
11.87
|
4.5
|
6.05
|
2
|
8.0
|
|
GGT-006
|
1-1/8
|
15.19
|
11.97
|
4.5
|
6.05
|
2
|
8.0
|
|
GGT-007
|
1-3/8
|
15.31
|
12.06
|
4.5
|
6.05
|
2
|
8.0
|
|
GGT-008
|
1-5/8
|
15.31
|
12.06
|
4.5
|
6.05
|
2
|
8.0
|
|
GGT-009
|
1-1/8
|
20.50
|
17.25
|
4.5
|
6.05
|
3
|
10.0
|
|
GGT-010
|
1-3/8
|
20.75
|
17.53
|
4.5
|
6.05
|
3
|
10.0
|
|
GGT-011
|
1-5/8
|
20.75
|
17.53
|
4.5
|
6.05
|
3
|
10.0
|
|
GGT-012
|
2-1/8
|
20.94
|
17.63
|
4.5
|
6.05
|
3
|
10.0
|
|
GGT-013
|
1-3/8
|
26.66
|
23.41
|
4.5
|
6.50
|
4
|
19.5
|
|
GGT-014
|
1-5/8
|
26.66
|
23.41
|
4.5
|
6.50
|
4
|
19.5
|
|
GGT-015
|
2-1/8
|
26.84
|
23.63
|
4.5
|
6.50
|
4
|
19.5
|
|
GGT-016
|
1-5/8
|
24.78
|
19.66
|
6.0
|
7.87
|
3
|
21.0
|
|
GGT-017
|
2-1/8
|
24.87
|
19.87
|
6.0
|
7.87
|
3
|
21.0
|
|
GGT-018
|
2-1/8
|
34.56
|
30.50
|
6.0
|
7.87
|
4
|
23.0
|
|
GGT-018
|
2-5/8
|
34.75
|
30.56
|
6.0
|
7.87
|
4
|
23.0
|
